制造流程 MANUFACTURING PROCESS
無縫、半無縫以及焊接鋼管、以精密的機器制造工藝，獨特的技術以及嚴格的質量管控流程，來確保產品品質。
Seamless,Semi-seamless and Welded tubes & pipes are manufacturing throughout state art of equipment,unique technologies and strict quality assurance process.

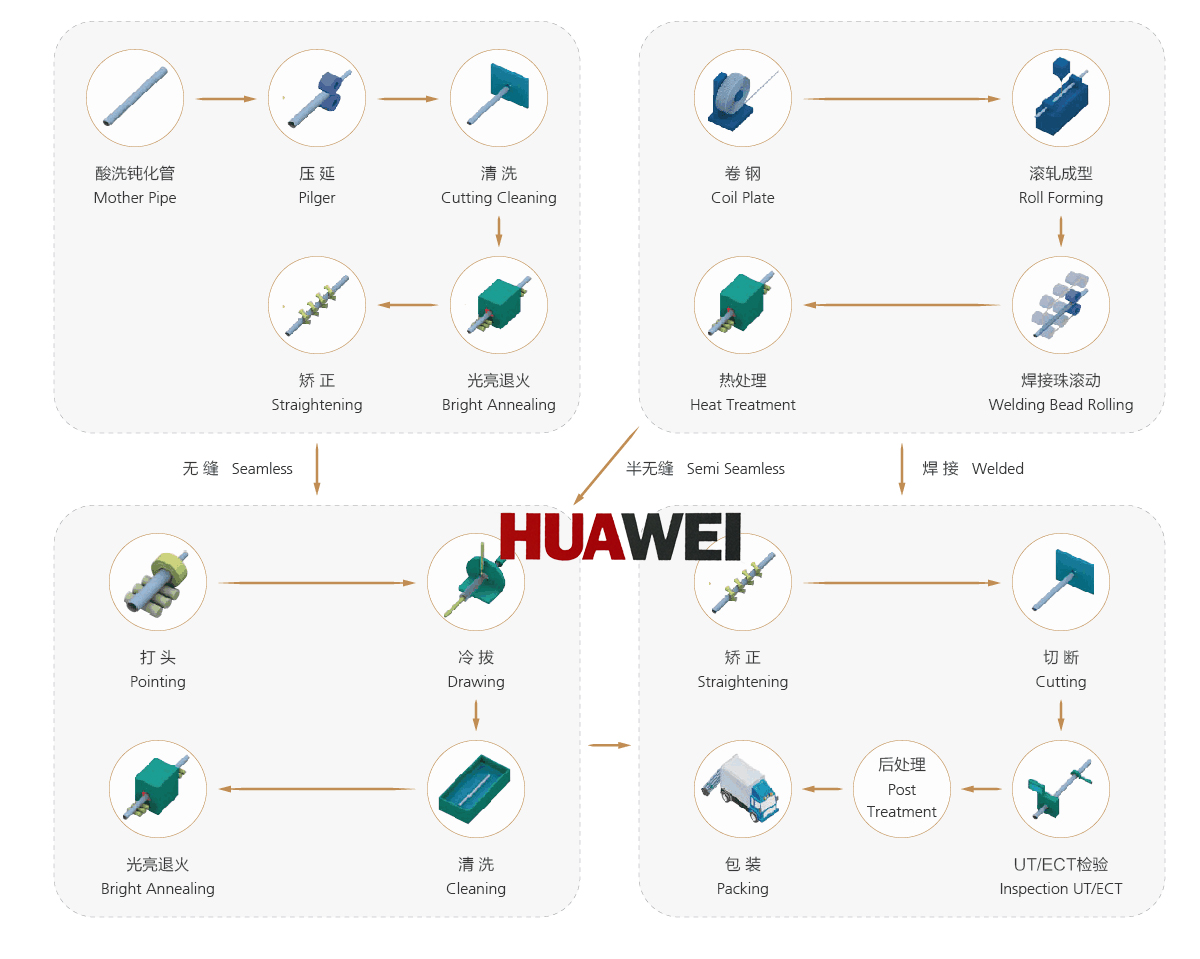

TUBE&PIPE 成型過程 TUBE&PIPE FORMING PROCESS

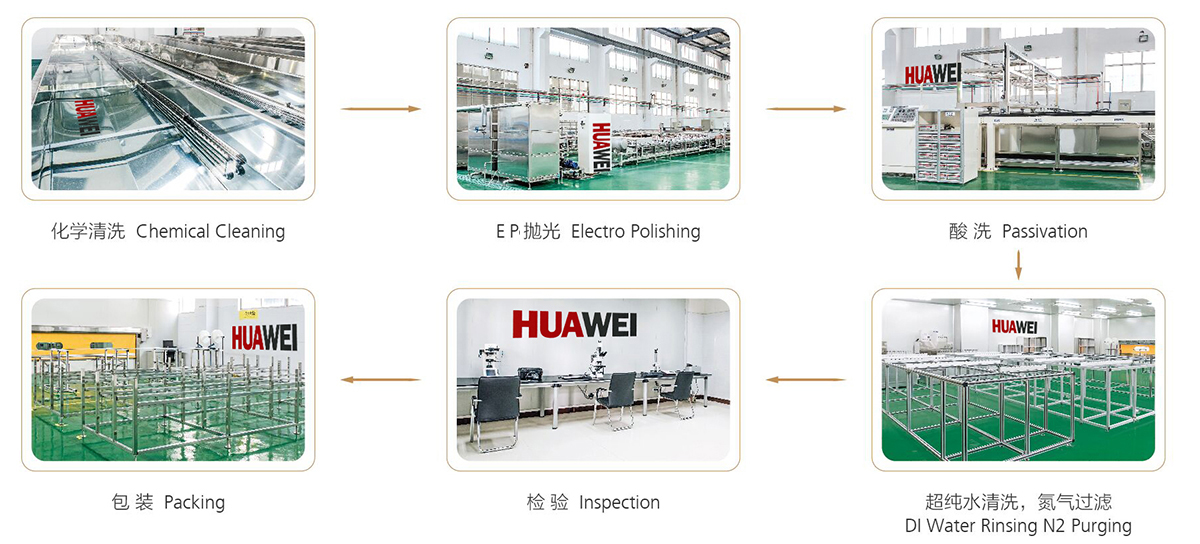

TUBE&PIPE 后續處理 TUBE&PIPE POST TREATMENT
生產產品規格 PRODUCTION SPECIFICATIONS
TUBE 尺寸表 AVAILABLE TUBE SIZE
| 八分（英寸）TUBE外徑代碼 Fractional(Inch) Tube O.D.Designation |
| 外徑 Outside Diameter |
壁厚 Wall Thickness(mm) |
| 英寸 inch |
毫米 mm |
| 1/4 |
6.35 |
0.89 |
1.00 |
|
|
| 3/8 |
9.53 |
0.89 |
1.00 |
|
|
| 1/2 |
12.70 |
|
1.00 |
1.24 |
1.65 |
| 3/4 |
19.05 |
|
|
1.24 |
1.65 |
| 1 |
25.40 |
|
|
1.24 |
1.65 |
| 1-1/4 |
31.80 |
|
|
|
1.65 |
| 1-1/2 |
38.1 |
|
|
|
1.65 |
| 2 |
50.80 |
|
|
|
1.65 |
| 公制（毫米）TUBMetric(mm) Tube |
| 外徑 Outside Diameter(mm) |
壁厚 Wall Thickness(mm) |
| 6 |
0.89 |
|
| 10 |
1.00 |
|
| 12 |
1.00 |
|
| 19 |
|
1.50 |
| 23 |
|
1.50 |
PIPE 尺寸表 AVAILABLE PIPE SIZE
| 外徑 Outside Diameter |
管子表號 Schedule(mm) |
| A |
英寸 inch |
毫米 mm |
5S |
10S |
| 8A |
1/4 |
13.8 |
1.20 |
1.65 |
| 10A |
3/8 |
17.3 |
1.20 |
1.65 |
| 15A |
1/2 |
21.7 |
1.65 |
2.10 |
| 20A |
3/4 |
27.2 |
1.65 |
2.10 |
| 25A |
1 |
34.0 |
1.65 |
2.80 |
| 32A |
1-1/4 |
42.7 |
1.65 |
2.80 |
| 40A |
1-1/2 |
48.6 |
1.65 |
2.80 |
| 50A |
2 |
60.5 |
1.65 |
2.80 |
| 65A |
2-1/2 |
76.3 |
2.10 |
3.00 |
| 80A |
3 |
89.1 |
2.10 |
3.00 |
| 100A |
4 |
114.3 |
2.10 |
3.00 |
| 125A |
5 |
139.8 |
2.80 |
3.40 |
| 150A |
6 |
165.2 |
2.80 |
3.40 |
| 200A |
8 |
216.3 |
2.80 |
4.00 |
| 250A |
10 |
267.4 |
3.40 |
4.00 |
| 300A |
12 |
318.5 |
4.00 |
4.50 |
Tube和Pipe管子標準單位長度均為4米/支，6米/支可根據需要定制
Standard unit length for both Tubes&Pipes is 4 meters per piece,6 meters per piece is available upon request.
不銹鋼氣缸管 Pneumatic Cylinder Stainless Steel Tube
| 不銹鋼氣缸管 Pneumatic Cylinder Stainless Steel Tube |
| 內徑 Internal Diameter(mm) |
外徑 Outside Diameter(mm) |
壁厚 Wall Thickness(mm) |
| 6 |
7 |
0.5 |
| 8 |
9 |
0.5 |
| 10 |
11 |
0.5 |
| 11.25 |
0.63 |
| 12 |
13.4 |
0.7 |
| 15 |
16.6 |
0.8 |
| 16 |
17.4 |
0.7 |
| 18 |
1 |
| 20 |
21.4 |
0.7 |
| 22.8 |
1.4 |
| 25 |
26.4 |
0.7 |
| 27.8 |
1.4 |
| 32 |
33.6 |
0.8 |
| 35 |
1.5 |
| 40 |
41.6 |
0.8 |
| 43 |
1.5 |
| 50 |
52 |
1 |
| 53 |
1.5 |
| 63 |
65 |
1 |
| 66 |
1.5 |
管子標準單位長度為2米/支，其他尺寸可根據需要定制
Standard unit length for both Tubes&Pipes is 2 meters per piece,other size is available upon request.
